The nose is an important part of the respiratory system. It helps us breathe, smell, and filter the air we take in. This worksheet will guide you in learning about the different parts of the nose, such as the nostrils and nasal cavity, and their functions. This worksheet is perfect for 5th to 12th Grade. Hope you like it. You can download this worksheet (PDF) using the link at the worksheet’s end.

Join our Telegram channel for free books, journals, quizzes, and printable worksheets.

Labeling The Parts of the Nose Worksheet

Read More: How do our senses work?

Label Parts of Nose Worksheet

The nose is a key part of the respiratory system and also our sense of smell. It plays several important roles, including filtering, warming, and moistening the air we breathe. Here’s a breakdown of the main parts of the nose and their functions:

Parts of the Nose and Their Functions:

1. Nostrils (Nares): Openings through which air enters the nose. They are the entry point for breathing and are lined with tiny hairs that filter dust, dirt, and other particles from the air.

2. Nasal Cavity:  The large, open space inside the nose that warms, moistens, and filters the air as it passes through. It also contains mucus that traps additional particles and pathogens.

3. Nasal Septum: Function: The wall that divides the nasal cavity into two halves. It’s made of bone and cartilage, providing structure and supporting the airflow in each nostril.

4. Nasal Conchae (Turbinates): Curved structures inside the nasal cavity that help increase the surface area for filtering, warming, and humidifying the air. They also direct the airflow smoothly through the nasal passages.

5. Olfactory Bulb: Located at the top of the nasal cavity, it’s part of the brain responsible for our sense of smell. It receives smell signals from odor particles and sends them to the brain to interpret different scents.

6. Sinuses: Air-filled spaces around the nose (within the skull) that help lighten the weight of the skull, produce mucus to keep the nose moist, and enhance our voice.

7. Cilia (Tiny Hairs): Located along the nasal passages, these tiny hairs move mucus and trapped particles toward the throat, where they can be swallowed or expelled, helping keep the respiratory system clean.

8. Middle Turbinate: The middle turbinate is a bony structure inside the nasal cavity that helps filter, warm, and humidify the air we breathe. It also directs airflow toward smell receptors, enhancing our sense of smell, and supports sinus drainage, preventing blockages and maintaining clear nasal passages.

9. Superior Turbinate: The superior turbinate is the smallest of the three turbinates in the nasal cavity, located at the top of the nose. It helps filter, warm, and humidify the air we breathe. Additionally, it directs airflow toward the olfactory region, enhancing the sense of smell and aiding sinus ventilation.

10. Inferior Turbinate: The inferior turbinate is the largest and most prominent of the nasal turbinates, located at the bottom of the nasal cavity. It plays a key role in warming, filtering, and humidifying the air we breathe. It also helps in regulating airflow and supports proper sinus drainage and nasal passage health.

11. Fossa of Rosenmüller: The fossa of Rosenmüller is a small, deep area located at the back of the nasal cavity, near the junction of the nasal and pharyngeal regions. It’s an important anatomical space where the eustachian tube opens, helping to equalize pressure between the middle ear and the atmosphere.

12. Eustachian Tube Office: The Eustachian tube is a canal that connects the middle ear to the nasopharynx, the upper part of the throat behind the nose. It helps equalize air pressure between the middle ear and the outside environment, allowing proper hearing and preventing ear discomfort caused by pressure changes.

Each part of the nose works together to ensure that the air we breathe is clean, warm, and moist before it reaches the lungs. The nose also gives us the ability to smell, which is essential for tasting food, detecting hazards, and enjoying scents.

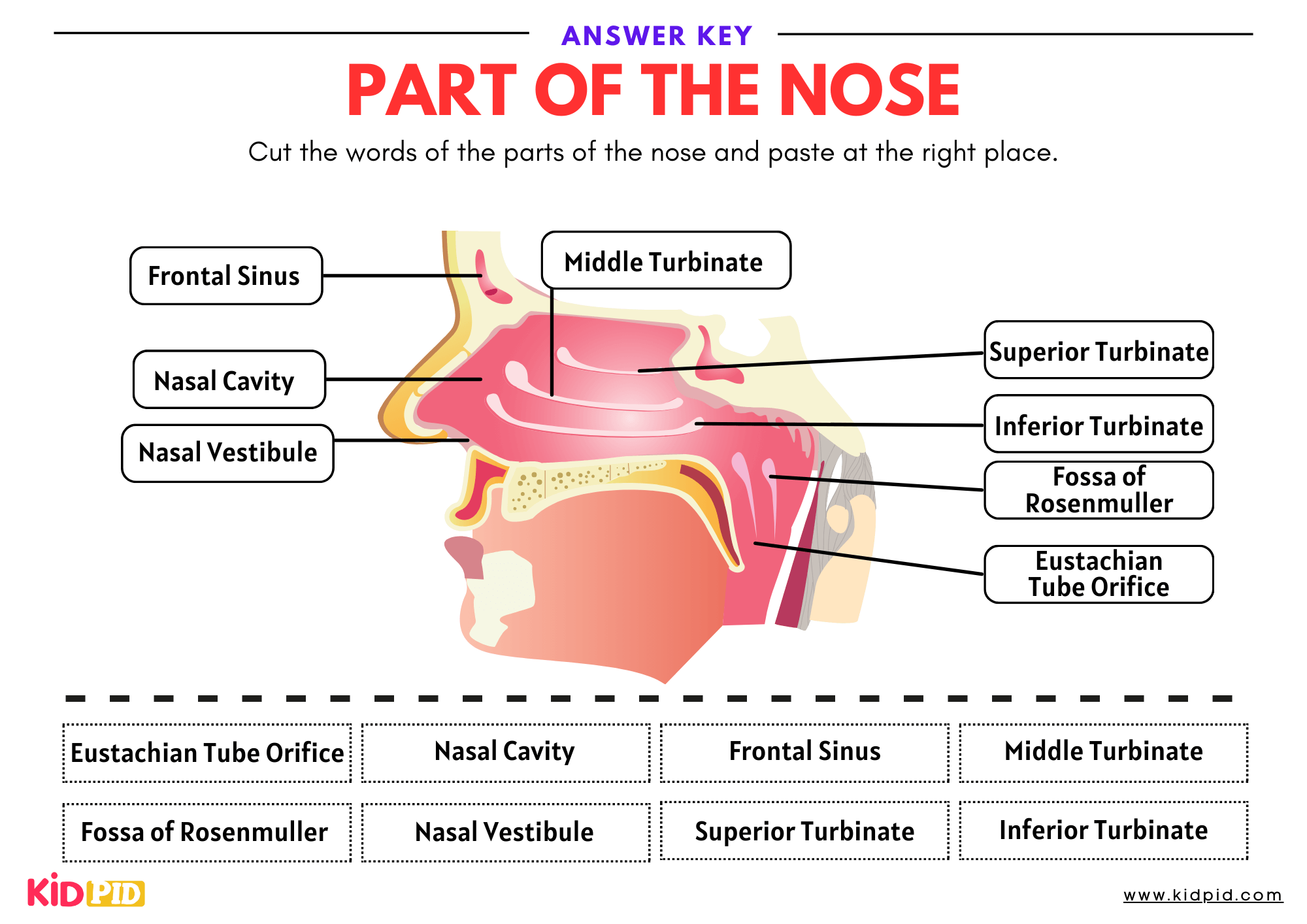

Label Parts of Nose Worksheet

Key Facts About the Label Parts of the Nose Worksheet

This educational resource is specifically designed for students (Grades 5–12) to deepen their understanding of human anatomy. It serves as an interactive bridge between theoretical biology and practical identification. Key highlights include:

  • Curriculum-Aligned: Created by experienced educators to meet middle and high school science standards.
  • Comprehensive Anatomy: Covers essential structures ranging from external features like the nostrils to internal anatomy like the olfactory bulb.
  • Printable & Accessible: Available as a high-quality PDF, making it ideal for classroom distribution or home-schooling environments.

Parts of the Nose and Their Functions

To effectively complete the worksheet, students must understand the role of each nasal structure:

  1. Nostrils (Nares): The gateway for air; lined with protective hairs to filter debris.
  2. Nasal Cavity: A specialized chamber that warms, moistens, and filters incoming air.
  3. Nasal Septum: The central wall (bone and cartilage) that divides the nose into two symmetrical passages.
  4. Nasal Conchae (Turbinates): Curved structures that maximize surface area to optimize air filtration and humidification.
  5. Olfactory Bulb: The neural structure responsible for translating chemical odor signals into sensory information for the brain.
  6. Sinuses: Air-filled pockets that reduce skull weight and facilitate mucus production.

How Does the Nose Work?

The nose functions as a sophisticated air-processing system. It is not merely an entry point; it is a vital filter that prepares air for the lungs. As you inhale, the nose captures pathogens, regulates the temperature of the air, and adds necessary moisture. Simultaneously, it allows for chemoreception—the process of detecting odors—which is inextricably linked to our sense of taste and overall safety.

Benefits of Learning About Nasal Anatomy

Studying the nose provides students with a foundational understanding of the respiratory system. Benefits include:

  • Enhanced Biological Literacy: Understanding how anatomy dictates function.
  • Systemic Perspective: Realizing how the nose is connected to the ears (via the Eustachian tubes) and the brain (via the olfactory system).
  • Health Awareness: Recognizing how structures like cilia and mucus protect the body from infections.

Learning Objectives

By the end of this exercise, students will be able to:

  • Identify and label key anatomical features of the human nose.
  • Explain the distinct physiological function of each labeled part.
  • Describe the journey of air from the nostrils to the pharynx.

Worksheet Instructions

  1. Review the Diagram: Familiarize yourself with the provided visual anatomy guide.
  2. Analyze the Structures: Read the function descriptions to understand why each part is located where it is.
  3. Labeling: Fill in the blank boxes corresponding to the correct anatomical structure.
  4. Self-Correction: Use the answer key (if provided) or review the content guide to verify your labels.

Interesting Facts About Nasal Vocabulary Words

  • “Turbinates” are named for their scrolled shape, similar to a turbine, which helps “spin” the air to ensure it makes contact with the nasal lining.
  • The “Fossa of Rosenmüller” is often overlooked, yet it is critical for ear pressure regulation, highlighting that the nose and ears are a single integrated system.

Real-Life Applications

Understanding nasal anatomy has practical implications in daily life:

  • Medicine: Helps explain why we get “stuffy” noses (inflammation of the turbinates) or why ear pressure changes during flights.
  • Health & Wellness: Demonstrates the importance of nasal breathing vs. mouth breathing for better air filtration.

FAQs

Q1. Is this worksheet suitable for younger children?

Answer: While designed for Grades 5–12, advanced 4th-grade students or those with a high interest in science may find the labeling activity engaging.

Q2. Why are there different types of turbinates (Superior, Middle, Inferior)?

Answer: Each is located in a different area to ensure that air is filtered and warmed regardless of where it travels within the nasal cavity.

Q3. Can I use this for a classroom project?

Answer: Yes, the worksheet is designed to be a collaborative or individual classroom tool, perfect for units on the respiratory or sensory systems.

Understand the human sense of smell with the Label Parts of Nose Worksheet. Students identify important nose structures, build science vocabulary, improve labeling accuracy, and reinforce essential human anatomy concepts through practice. Make every lesson more engaging with printable flashcards, quizzes,  worksheets, essays, paragraphs, and interactive resources. Follow us on YouTube, Facebook, Pinterest& Telegram.
